605-11 | Differential pressure indicating transmitter | range .25-0-.25" w.c. | max. pressure 10 psi (1.7 bar) | ±2% electrical accuracy | ±3% mechanical accuracy. | Dwyer Instruments

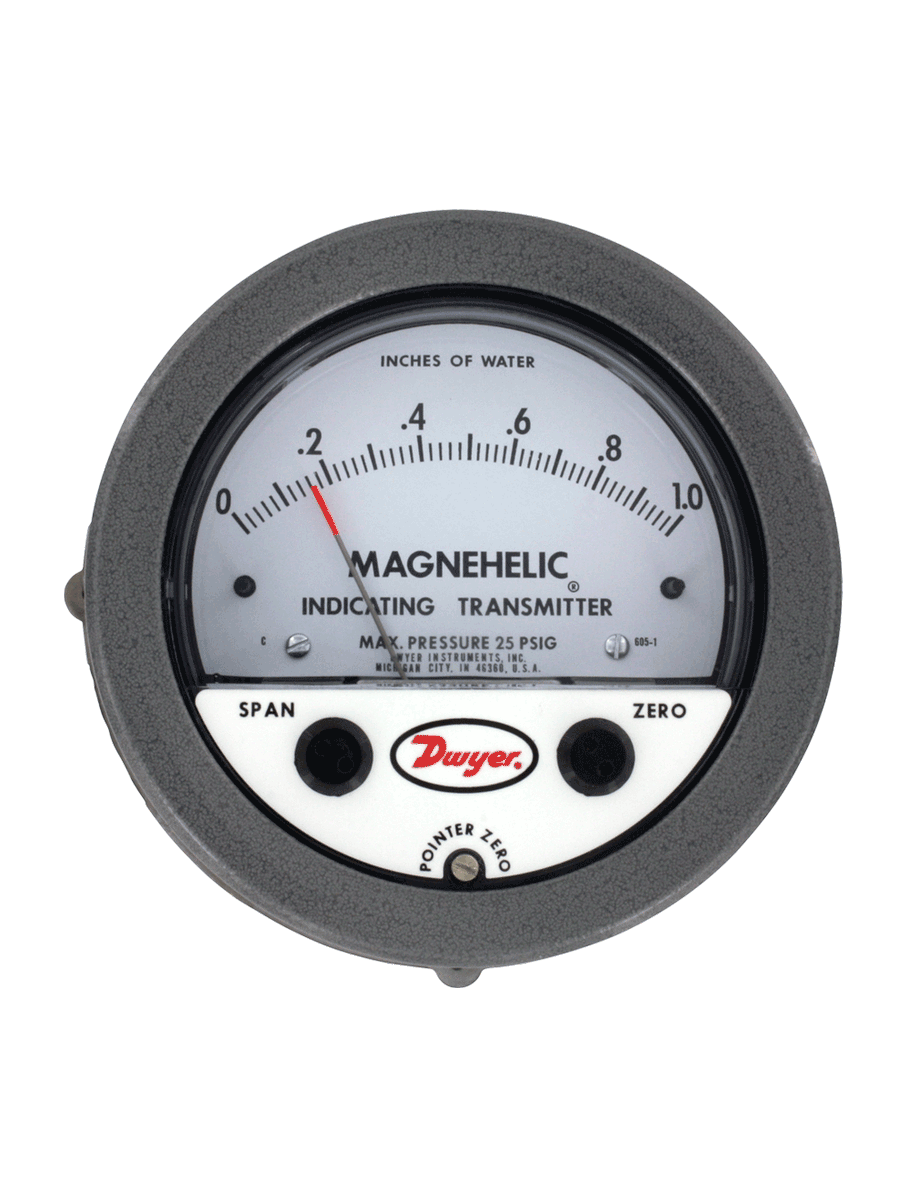

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 605-11

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer Instruments 605-11 Documents

Instruction Manual Series 605 Catalog Page 605 More Info

Overview

Details for 605-11

Dwyer Instruments NCO-605-11 Dwyer Instruments NCO-605-11 is a highly accurate differential pressure transmitter designed for precise and reliable pressure measurement in demanding industrial environments. With its rugged construction and advanced technology, this transmitter excels in applications requiring accurate pressure sensing and control. Key Features: * Differential pressure range: 0.25-0-.25" W.C. * High accuracy: Â±1.0% of reading * Temperature range: -40Â° to 180Â° F * Pressure connection: 1/8" FNPT * Digital display for easy reading * Compact design for space-saving installation * Durable construction for long-lasting performance Benefits: * Accurate and reliable differential pressure measurement * Versatile for use in various industrial applications * Easy to install and maintain * Provides valuable data for process monitoring and control * Enhances efficiency and safety in industrial operations Applications: * Process control systems * Air handling systems * HVAC monitoring * Flow measurement and monitoring * Leak detection Conclusion: Experience the precision and reliability of Dwyer Instruments NCO-605-11 differential pressure transmitter. Contact us at our HVAC supply store for the best prices and fast shipping! Trust our expertise and commitment to excellence for all your industrial supply needs.

Series 605 Magnehelic® Differential Pressure Indicating Transmitter

Same Size as Standard Magnehelic® Differential Pressure Gage

The Series 605 Magnehelic® Indicating Transmitter provides for both visual monitoring and electronic control of very low differential pressure. The Series 605 is ideal for control applications in building HVAC systems where local indication is desired during routine maintenance checks or necessary when trouble shooting the system. The easily read dial gage is complimented by the two-wire, 4 to 20 mA control signal utilizing the time-proven Dwyer® Magnehelic® gage mechanical design and Series 600 transmitter technology. The two-wire design with terminal strip on the rear simplifies connection in any 4 to 20 mA control loop powered by a 10 to 35 VDC supply.

NIST CALIBRATION available in Product Configurator.

Please see Series AT-605 for ATEX approved.

Product Applications

Monitor pressures in ducts, rooms, or total building pressures
Filter monitoring
Local indication of clean room pressures with process signal sent to control room

Easy to read gage permits viewing from far away
Patented design provides quick response to pressure changes means no delay in signaling and alerting to critical situations
Durable and rugged housing and high-quality components combined provides long-service life and minimized down-time
Optional stainless steel bezel is the same installation diameter as Magnehelic® gage and simplifies field upgrade to 605 indicating transmitter

Specifications

Series: 605 Magnehelic® Differential Pressure Indicating Transmitter
Category/Type: Pressure
Type: Differential Pressure
Series: 605 Magnehelic® Differential Pressure Indicating Transmitter
: GAGE SPECIFICATIONS
Service: Air and non-combustible; compatible gases.
Wetted Materials: Consult factory.
Accuracy: See Ordering page.
Stability: ±1% FS/yr.
Pressure Limits: See Ordering page.
Temperature Limits: 20 to 120°F (-6.67 to 48.9°C).
Process Connections: 1/8" female NPT.
Size: 4" (101.6 mm) dial face; 5" (127 mm) OD x 2-11/16" (68.3 mm).
Weight: 1 lb; 12.6 oz (811 g).
Agency Approvals: CE.
: TRANSMITTER SPECIFICATIONS
Accuracy: See Ordering page (includes linearity; hysteresis; and repeatability).
Temperature Limits: 20 to 120°F (-6.67 to 48.9°C).
Compensated Temperature Range: 32 to 120°F (0 to 48.9°C).
Thermal Effect: ±0.025% FS/°F (0.045% FS/°C).
Power Requirements: 10 to 35 VDC (2-wire).
Output Signal: 4 to 20 mA.
Zero and Span Adjustments: Protected potentiometers.
Loop Resistance: DC: 0 to 1250 Ω maximum.
Current Consumption: DC: 38 mA maximum.
Electrical Connections: Screw terminal block.
Mounting Orientation: Diaphragm in vertical position. Consult factory for other position orientations.
