16B-53 | 1/16 DIN temperature/process controller | current output 1 and relay output 2. | Dwyer Instruments

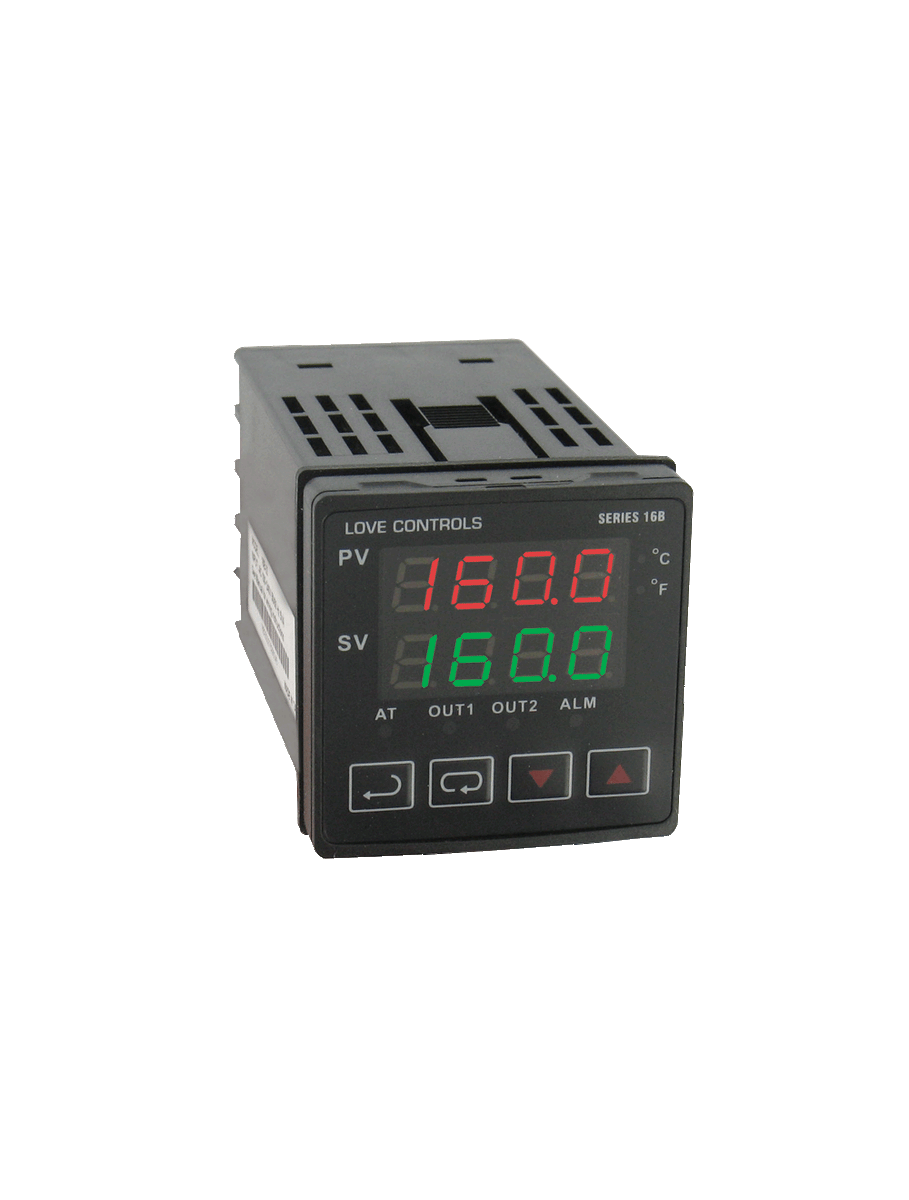

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 16B-53

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer Instruments 16B-53 Documents

16B (English)16B Quick Start 16B (Chinese)Snubber Application Note Series 16B Catalog Page More Info

Overview

Details for 16B-53

Dwyer Instruments' 16B-53 is a precision temperature sensor ideal for precise temperature control in demanding industrial applications. Its DIN-sized form factor ensures compatibility with standard industrial enclosures, while the versatile 1/16" NPT threads allow for easy installation in confined spaces. The 16B-53 features a robust stainless steel construction, providing excellent corrosion resistance and durability in harsh environments. Its high accuracy temperature sensing element delivers reliable and repeatable readings, making it suitable for critical temperature control applications. The wide temperature range of -40Â°F to 300Â°F covers most industrial process needs. With its compact size and easy installation, the 16B-53 is an ideal choice for applications requiring precise temperature monitoring and control. Its rugged construction and reliable performance make it a valuable asset for diverse industrial settings. Shop our HVAC supply store for your Dwyer Instruments 16B-53 temperature sensor. We offer the best prices and fast shipping to ensure your operations run smoothly.

Series 16B 1/16 DIN Temperature/Process Controller

Dual Control Output, RS-485 Communication, Universal Inputs

Monitor and control temperature or process applications with precision using the Series 16B controllers. The units offer two separate outputs for dual loop control in direct or reverse acting. Select relay, voltage, or current output combined with a second relay output.

The Series 16B provides dual LED displays for local indication of process value and setpoint value. Output status, engineering scale, auto tuning and alarm status is also indicated on the front panel.

Control methods include ON/OFF, PID, self-tune and manual tune. PID control is supported with 64 ramp/soak control actions. Two additional alarm outputs are standard on the Series 16B. The alarm outputs can be quickly configured by using the thirteen built-in alarm functions.

The controller easily communicates with other external devices such as PC's and PLC's for data search and system integration using the built-in RS-485 interface. Up to 247 communication addresses are available with transmission speeds of 2400 to 38,400 bps. The Series 16B also features universal input, selectable °F/°C, selectable resolution and security functions.

Product Applications

Control temperature for boilers, damper control based on temperature or pressure.
Hot plates/melt pots.
Packaging equipment.
Environmental chambers.
Medical equipment.
Food service equipment.

Universal input accepts process transmitters, RTD’s or thermocouple signals
On/off, PID, or manual output control
RS-485 standard on all models
Stage control program for up to 64 ramp/soak actions

Specifications

Series: 16B 1/16 DIN Temperature/Process Controller
Category/Type: Process Control
Type: Process Controllers
Series: 16B 1/16 DIN Temperature/Process Controller
Inputs: Thermocouple; RTD; DC voltages or DC current.
Display: Two 4-digit; 7 segment .25" H (6.35 mm) LED's. PV: red; SV: green.
Accuracy: ±0.25% span; ±1 least significant digit.
Supply Voltage: 100 to 240 VAC; 50/60 Hz or 24 VDC (depending onmodel).
Power Consumption: 5 VA max.
Operating Temperature: 32 to 122°F (0 to 50°C).
Memory Backup: Nonvolatile memory.
Control Output Ratings: Relay: SPST; 5 A @ 250 VAC resistive; Voltage Pulse: 14 V; 10% to -20% (max 40 mA); Current: 4 to 20 mA.
Communication: RS-485 Modbus® A-5-11/RTU communication protocol.
Weight: 4 oz (114 g).
Agency Approvals: CE; RoHS; cUL; UL.
Front Panel Rating: IP56.
