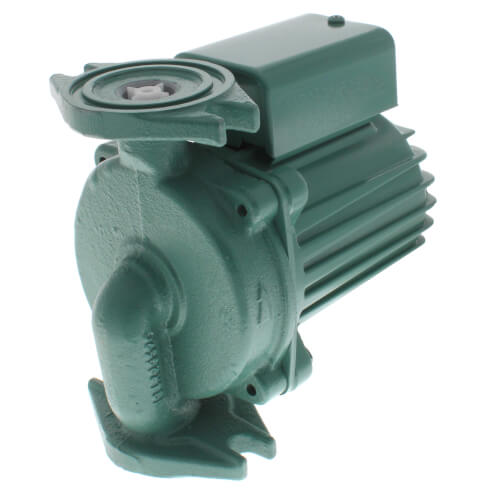

009-F5-IFC | 009 Cast Iron Circulator with Integral Flow Check, 1/8 HP | Taco

Taco 1/8HP CIRCULATOR W/FLOW CHECK [009-F5-IFC] The Taco 1/8HP CIRCULATOR W/FLOW CHECK is a compact and efficient circulator designed to move fluids in a variety of applications. It features a 1/8 horsepower motor that provides ample power for a wide range of flow rates. The flow check valve prevents backflow and ensures proper circulation. This circulator is constructed with durable materials to withstand the demands of industrial use. Its cast iron housing and bronze impeller provide strength and corrosion resistance. The circulator also features a built-in thermal overload protector to prevent overheating. The Taco 1/8HP CIRCULATOR W/FLOW CHECK is ideal for use in hydronic heating and cooling systems, as well as other applications requiring efficient fluid circulation. Its compact design and easy installation make it a versatile choice for a variety of industrial settings. Shop our HVAC supply store for the best prices and fast shipping on all your industrial supply needs.

Rugged, Versatile, Quick and Easy to Install

With their self-lubricating design and no mechanical seal, Taco 00 ^® Series Cartridge Circulators provide unmatched reliability that makes them maintenance free. Every Taco 00 ^® Series Cartridge Circulator and 00 IFCm^® circulator features a field-replaceable cartridge that contains all the moving parts. Replacing the cartridge rebuilds the circulator, so field service is fast and simple. 00 ^® Series Cartridge Circulators wide variety of configurations, flange orientation, mounting and other options, materials and capabilities provide you with great performance in a broad range of applications.

Taco 00 IFC ^® Cartridge Circulators feature an Integral Flow Check (IFC) that eliminates the additional installation costs that go along with separate in-line flow checks, improves system performance and further reduces maintenance.

Performance Data

Features

Applications

Note: Full flange-to-flange three-year warranty on all 00 Series circulators.

Performance Data
Flow Range: 0-10 GPM
Head Range: 0-34 Feet
Minimum Fluid Temperature: 40+F (4+C)
Maximum Fluid Temperature: 230+F (110+C)
Maximum Working Pressure: 125 PSI
Connection Sizes: 3/4", 1", 1-1/4", 1-1/2" Flanged
The Taco 009-IFC with Integral Flow Check (IFC) is designed to reduce installation costs when zoning with "00" circulators on a wide range of residential and light commercial higher-head/lower-flow water circulating applications. Typical uses include Hydronic heating, Radiant In-Floor/Panel heating and closed-loop solar heating systems. The bronze 009-IFC can be used in higher-head/lower-flow heat recovery, ,open-loop solar heating and light commercial domestic water recirculation systems. The unique replaceable cartridge contains all of the moving parts and allows for easy service instead of replacing the entire circulator. Available with optional Priority Zoning or Variable Speed controls

Features
* Integral Flow Check (IFC) Patent # 5,664,939
Eliminates separate in-line flow check
Reduces installed cost, easy to service
Improved performance vs. In-line flow checks
* Optional Variable Speed or Priority Zoning Control
* Unique replaceable cartridge-Field serviceable
* Quiet, Efficient Operation
* Direct Drive-Low Power Consumption
* Self-Lubricating, No Mechanical Seal
* Standard high capacity output-Compact design
Wide range of applications
Cast Iron or Bronze Construction, flanged connections

Typical Applications
* Hydronic heating * Radiant In-Floor/Panel heating * Closed-loop solar heating systems.

Replacement Parts List:
Casing O-Ring: 009-005RP
Flange Gasket Set: 007-007RP
Capacitor or PC Board: 009-018RP
Cartridge Assembly Complete: 009-021RP
Valve Addembly Trans/Relay: 009-033RP
