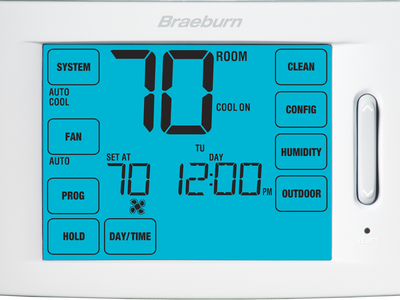

6300 | Deluxe Touchscreen Universal Programmable Thermostat 4H / 2C | BRAEBURN

Advanced 24V Braeburn Multi-Stage Thermostat: Experience Precision HVAC Control (SKU: 6300) The Braeburn MPK-6300-Braeburn is a state-of-the-art hybrid thermostat, designed for superior HVAC control in commercial and industrial settings. Its intuitive digital touchscreen and large 12-inch screen provide a clear and user-friendly interface. Featuring multi-stage heating and cooling capabilities, this thermostat optimizes energy efficiency by regulating temperature fluctuations. It supports conventional and heat pump systems, offering versatility for diverse HVAC setups. The customizable temperature range from 45-90°F ensures precise climate management. With its robust construction and advanced algorithms, the MPK-6300-Braeburn ensures reliable and precise performance. Its 4H/2C configuration allows for up to four heating stages and two cooling stages, maximizing comfort and energy savings. Technical Specifications: * Model: Braeburn MPK-6300-Braeburn * Voltage: 24V * Temperature Range: 45-90°F * Configuration: 4H/2C * Touchscreen: Yes, 12-inch * Compatibility: Conventional and heat pump systems Upgrade your HVAC system with the Braeburn MPK-6300-Braeburn Thermostat and elevate your temperature control to the next level. Experience precision, efficiency, and unwavering reliability. Our HVAC supply store is your trusted source for top-quality HVAC products, offering the best prices and swift delivery. Shop now and transform your HVAC management!

Features

•  7 Day, 5-2 Day or Non-Programmable
• Large 12 Sq. In. Easy-Read Touchscreen
• Auto or Manual Changeover
• Bright Blue Backlight Display
• SpeedBar Multi-Function Button
• Residential or Commercial Modes
• Adjustable Temperature Limits
• Indoor or Outdoor Remote Sensing
• SpeedSet 7 Day Programming Mode
• Meets Energy Aware® Guidelines*
• Separate User and Installer Reset Buttons
• Auxiliary Heat Fossil Fuel Option
• Hardwire or Battery Power
• Multi-Level Keypad Lockout
• Economizer Control
• Circulating Fan Mode
• Programmable Fan Mode
• English / Spanish Packaging and Instruction Card with FREE Contractor Branding

Architectural Specifications

The universal auto changeover thermostat shall be a Braeburn® model number 6300, 4.13” high x 6.13” wide x 1.38” deep, powered with either 24 Volt AC or with two “AA” Alkaline batteries (3.0 Volt DC). In the event of a power failure, the unit shall retain all user, installer and program settings. The thermostat shall be compatible with low voltage single stage or multi-stage gas, oil, or electric conventional heating or cooling systems with up to three stages of heating and two stages of cooling, and heat pump systems with up to four stages of heating and two stages of cooling. Also compatible with 250mv – 750mv millivolt heating only systems. The thermostat shall have a bright blue backlight display, touchscreen with SpeedBar®, separate sub-base and multi-level keypad lockout. Temperature control range shall be between 45° and 90° F (7° and 32° C), accuracy of +/- 1° F (+/- .5° C). Operating humidity range between 5% and 95% relative humidity. The thermostat shall include separate installer and user setup modes, residential or commercial setup modes, permanent non-volatile memory to retain user settings, filter, UV and humidifier pad check monitor, adaptive recovery mode (ARM™), programmable independent fan control, residual cooling fan delay, indoor or outdoor remote sensor capability, auxiliary heat fossil fuel programming, and compressor power outage protection. A front reset button will return user settings to default values when pressed. Meets IECC 2012 and Energy Aware® Guidelines.
