31424 | PULL DOWEL, 3/8X3 | Jergens

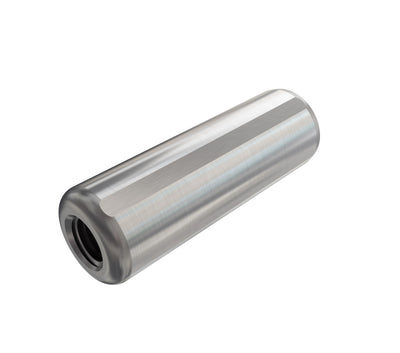

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 31424
Documents and manuals
Jergens 31424 Documents
Overview
Details for 31424
**Jergens Pull Dowel: 3/8" x 3"**
Jergens' Pull Dowel is a precision-engineered component, designed to provide secure positioning and alignment during assembly and machining operations. Constructed with hardened steel for exceptional durability and longevity, this dowel features a 3/8" diameter and a length of 3 inches, making it suitable for a wide range of applications.
Its primary purpose is to facilitate the alignment of fixture components, ensuring precise positioning of workpieces during drilling, tapping, or any other precision machining process. The dowel's use eliminates guesswork and manual adjustments, improving accuracy and reducing assembly time.
The pull dowel is designed to be inserted into a pre-drilled hole and secured using a pull stud or similar attachment. This robust design allows for quick and easy installation, while providing a firm hold that prevents the dowel from moving or shifting during operation.
**Key Features:**
* Hardened steel construction for durability and longevity
* 3/8" diameter x 3" length for a wide range of applications
* Precision-engineered for accurate alignment
* Facilitates quick and easy installation
* Compatible with pull studs or other attachment methods
**Benefits:**
* Improved accuracy and precision during machining operations
* Reduced assembly time and increased productivity
* Elimination of guesswork and manual adjustments
* Streamlined manufacturing processes and enhanced efficiency
**Applications:**
* Fixture component alignment
* Precision drilling, tapping, and machining
* Automotive manufacturing
* Aerospace industry
* Heavy machinery production
Specifications
Item Number | 31424 |
Brand | Jergens |
SubCategory 1 | Specialty Fasteners |
SubCategory 2 | Fastener Hardware |
SubCategory 3 | Pull Dowels |
SubCategory 4 | Flat Vent Alloy Steel Pull Dowels |
Type | Flat Vent Alloy Steel Pull Dowels |
