P2150SU-396+NRX24-EP2-MOD | Electronic Pressure Independent Valve (EPIV), 1 1/2
$1,152.90
Brand: BelimoSKU: P2150SU-396+NRX24-EP2-MOD
Availability: DISCONTINUED

Speak With a Technical Expert

Call (847) 773-1023

Hours: 9am - 5pm CDT M-F

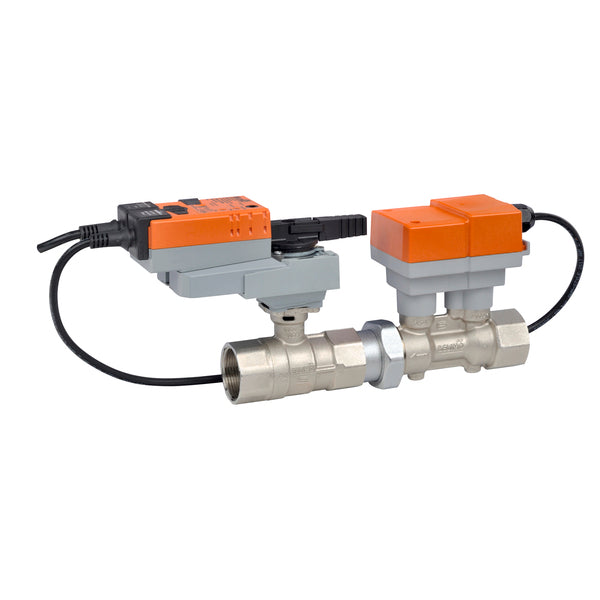

P2150SU-396+NRX24-EP2-MOD | Electronic Pressure Independent Valve (EPIV), 1 1/2", 2-way, 39.6 | Configurable Valve Actuator, Non fail-safe, AC/DC 24V, 2-10V | Belimo (OBSOLETE)

Belimo | P2150SU-396+NRX24-EP2-MOD
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to P2150SU-396+NRX24-EP2-MOD

Documents and manuals

Belimo P2150SU-396+NRX24-EP2-MOD Documents

Overview

Details for P2150SU-396+NRX24-EP2-MOD

DISCONTINUED AND REPLACED WITH EP150+NRX-E

Electronic Pressure Independent Valve (EPIV), 1 1/2", 2-way, 39.6 | Configurable Valve Actuator, Non fail-safe, AC/DC 24V, 2-10V

Water-side control of heating and cooling systems for AHUs and water coils. Equal Percentage/ Linear: heating and cooling applications.

Specifications

Valve specifications
Angle of Rotation
90
End Fitting
Internal thread
Flow
39.6
Fluid
Chilled or hot water up to 60% glycol max (open loop/steam not allowed)
Pattern
2-way
PI-Technology
Electronic
Pressure Independent
YES
Sensor Technology
Ultrasonic with glycol and temperature compensation
Trim
Stainless steel
Valve Size
1.5" [40]
Actuator specifications
Actuator Type
Non fail-safe
Control Type
  • BACnet MS/TP
  • Modbus RTU
  • MP-Bus
  • Hybrid (communicative/analog)
Degree of Protection
IP54 NEMA 2 UL Enclosure Type 2
Electrical Connection
cable
Manual Override
External push button
Power Consumption (Running)
4.5 W
Running Time (Motor)
90 s
Torque
90 in-lb [10 Nm]
Voltage AC/DC
AC/DC 24 V
