A/100-3W-D-8"-GD | RTD 100 ohm (3 wire) | Duct Temperature Sensor | Sensor Length: 8 inch | Galvanized Housing Enclosure Box | ACI

100 Ohm (Three Wires) RTD, Duct, 8", Galvanized Enclosure

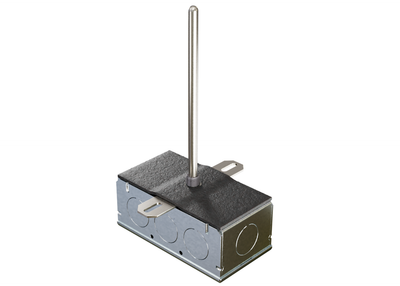

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to A/100-3W-D-8"-GD

Jump to: Documents Overview Specifications Reviews

Documents and manuals

ACI A/100-3W-D-8"-GD Documents

Datasheet Installation Instructions More Info

Overview

Details for A/100-3W-D-8"-GD

A/100-3W-D-8"-GD | RTD 100 ohm (3 wire) | Duct Temperature Sensor | Sensor Length: 8 inch | Galvanized Housing Enclosure Box

100 Ohms @ 32 degrees F ( platinum RTD sensing element) with a 0.00385 temperature coefficient in a three wire configuration. The galvanized metal duct mount configuration has a mounting flange for quick installation and a foam pad to dampen vibrations. The sensing element is double encapsulated to avoid sensor failures caused by moisture infiltration.

ACI duct temperature sensors are designed for HVAC, Building Automation, and light industrial systems. Specific applications include: zone control, air handling units, and temperature monitoring.

Specifications

Item Number	A/100-3W-D-8"-GD
Brand	ACI
Element Type	100 ohm (3 wire)
Sensing Element	RTD
Sensor Configuration	Duct
Sensor Housing	Galvanized
Sensor Length	8 inch
Sensor	Temperature
