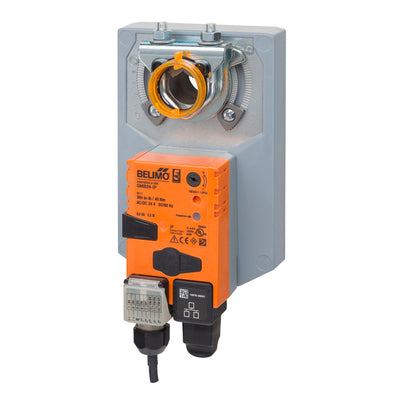

GMB24-IP | Damper Actuator | 360 in-lb | Non-Spring Return | 24V | Cloud API | BACnet IP | Modbus TCP | Belimo
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to GMB24-IP
Documents and manuals
Belimo GMB24-IP Documents
Overview
Details for GMB24-IP
Damper Actuator | 360 in-lb | Non-Spring Return | 24V | Cloud API | BACnet IP | Modbus TCP
Damper Actuator | 360 in-lb | Non-Spring Return | 24V | Cloud API | BACnet IP | Modbus TCP
Description
Cloud capable and communicating damper actuator for adjusting dampers in commercial HVAC applications.
- Non-Failsafe
- Air Damper Size Up to approx. 90 sq. ft.
- Nominal Torque 360 in‐lb [40 NM]
- Power Supply AC/DC 24 V
- Ethernet 10/100 Mbit/s, TCP/IP, integrated web server
- Conversion of sensor signals
- Communication via BACnet/IP, Modbus TCP and Ethernet to Belimo Cloud
Specifications
- Actuator Type
- Non fail-safe
- Angle of Rotation
- 95
- Control Type
- Communicative
- BACnet IP
- Cloud
- Modbus TCP
- Degree of Protection
- IP54 NEMA 1 UL Enclosure Type 1
- Electrical Connection
- cable
- Manual Override
- External push button
- Power Consumption (Holding)
- 3 W
- Power Consumption (Running)
- 5.5 W
- Running Time (Motor)
- 150 s / 90B0
- Running Time range (Motor)
- 70...220 s
- Safety Function
- NO
- Torque
- 40 Nm
- Voltage AC/DC
- AC/DC 24 V
Parts & Accessories
ZS-300 | NEMA 4X | 304 stainless steel enclosure. | Belimo
$1,546.20 each
ZS-260 | Explosion proof housing. | Belimo
$1,875.15 each
